13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

Certificación
CHINA Xi'An YingBao Auto Parts Co.,Ltd certificaciones
Estoy en línea para chatear ahora

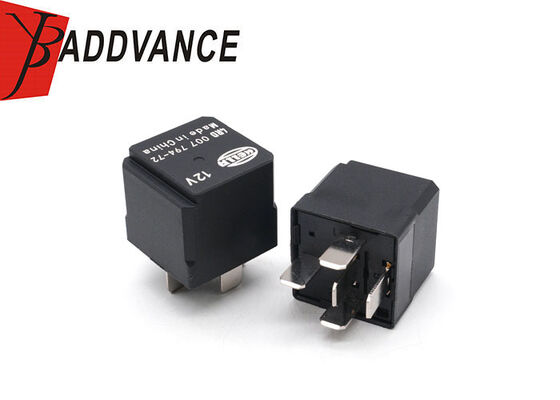

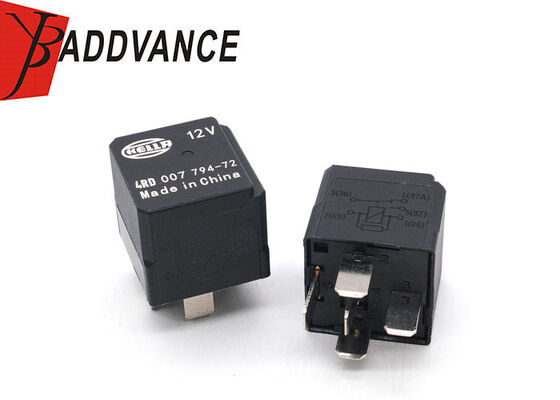

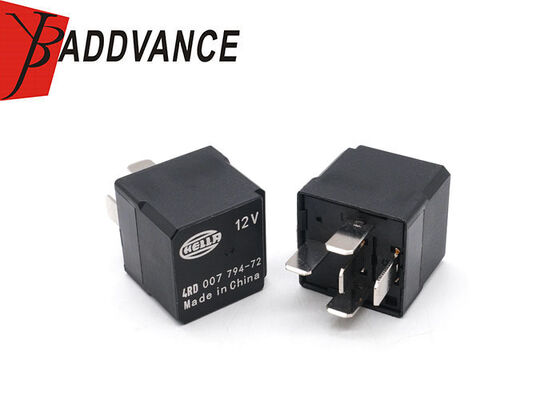

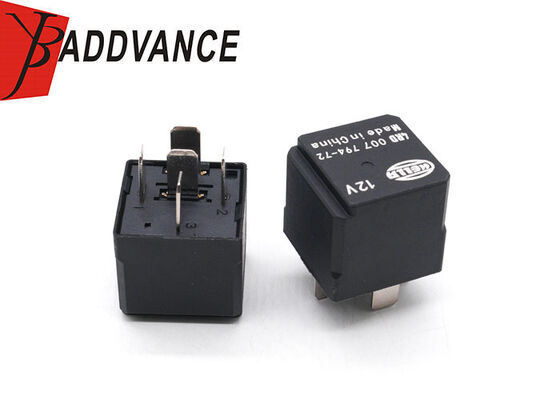

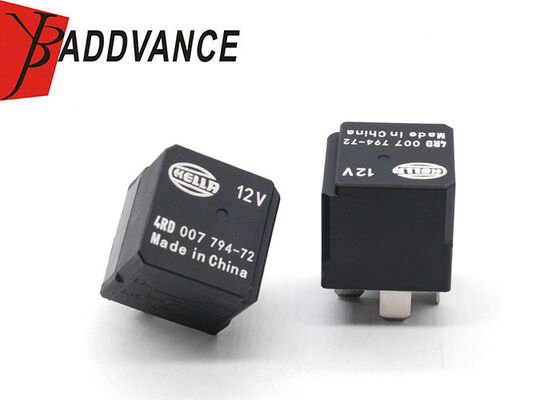

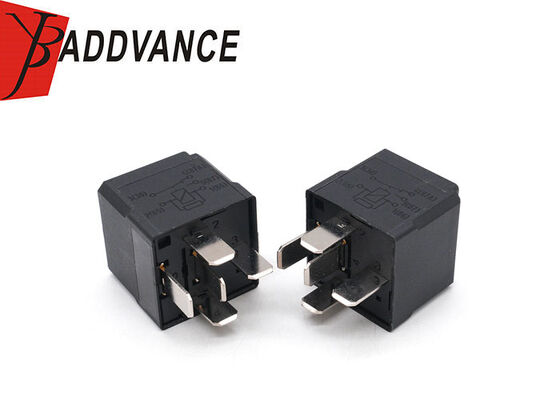

13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories
13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

Ampliación de imagen :  13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories

Datos del producto:

Lugar de origen: China (continental)
Nombre de la marca: YBADDVANCE
Certificación: CE FCC
Número de modelo: 13500119 4RD 007 794-72

Pago y Envío Términos:

Cantidad de orden mínima: 100 Unidades
Precio: Negociable
Detalles de empaquetado: Embalaje interior: 100 unidades por lote en bolsas. Embalaje exterior: cartón de 5 capas
Tiempo de entrega: Aproximadamente 5-8 días laborables
Condiciones de pago: T/T, Western Union, PayPal, tarjeta de crédito
Capacidad de la fuente: 50.000 unidades/polilla
Descripción detallada del producto
Referencia: 40A 12V Característica: Impermeable
Número de posición: Pin 5 Palabras clave: Relay automático
Código HS: 8536909000 Color: Negro
Solicitud: Para automotriz Garantía: 1 año
Lugar de origen: Shanxi, China

13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories







Description



The 4RD 007 794-72 12V is a standard 5-pin, 40-amp automotive relay manufactured by Hella (often cross-referenced with GM part number 13500119). It is widely used for switching high-current vehicle accessories like lights, horns, fuel pumps, and cooling fans.





Specifications & Pinout
  • Voltage: 12V DC
  • Amperage: 40A / 30A (Normally Open / Normally Closed)
  • Pins: 5-Pin standard layout (SPDT - Single Pole Double Throw)
  • Pin Configuration:
    • Pin 30: Common Feed (Power In)
    • Pin 85: Relay Coil (Ground)
    • Pin 86: Relay Coil (Trigger/Switch)
    • Pin 87: Normally Open (NO) Contact
    • Pin 87a: Normally Closed (NC) Contact





Product Picture Details







13500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 013500119 4RD 007 794-72 Hella Standard 5 Pin 12V 40 AMP Automotive Relay For High-Current Vehicle Accessories 1
